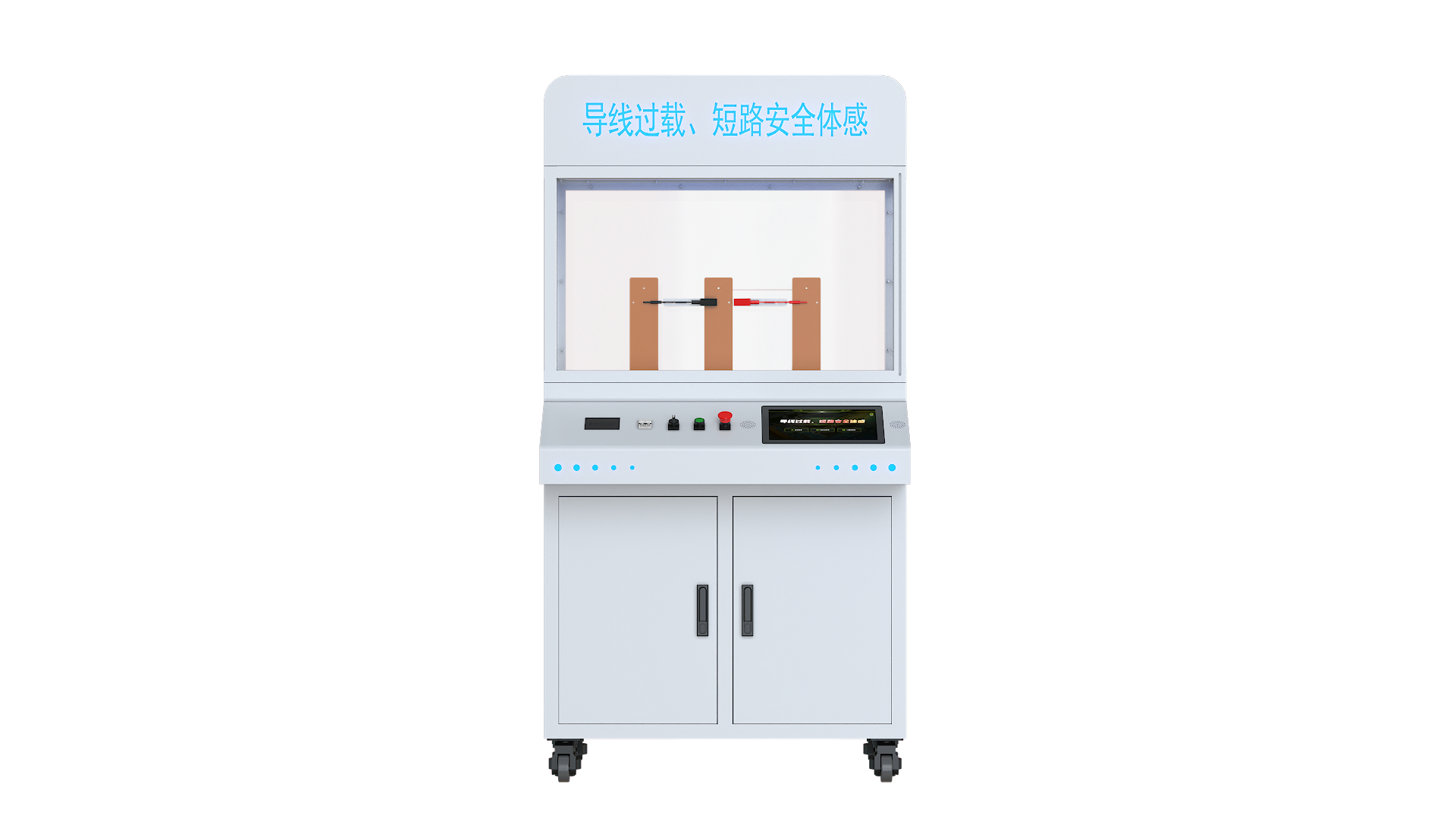

LINE OVERLOAD AND SHORT CIRCUIT SIMULATION SYSTEM (INTERACTIVE EXPERIENCE VERSION)
The Line Overload and Short Circuit Simulation System (Interactive Experience Version) is an immersive electrical safety training equipment designed specifically for industries such as electric power, construction, manufacturing, and property management. Focused on low-voltage safety simulation, high-precision sensing, and full-process interaction, it replicates the complete hazardous process of line overloads and short circuits on a 1:1 scale within a low-risk environment. Through a four-dimensional interactive experience of seeing, hearing, touching, and doing, trainees can intuitively recognize electrical hazards and master emergency response procedures, completely solving the pain points of traditional training that is often invisible, untouchable, and easily forgotten.
KEY FUNCTIONS
Knowledge Learning (Theoretical Foundation): Integrates standardized content including science popularization of line overload and short circuit principles, typical accident case studies, preventative measures, and emergency response workflows.
Interactive Operation (Immersive Experience): Trainees operate the system independently, connecting high-power loads (such as simulating multiple appliances running simultaneously) and adjusting current levels to trigger a line overload.
Assessment and Evaluation (Quantifiable Results): Supports both QR code real-name login and guest modes. Upon real-name login, data such as operation steps, hazard identification accuracy, emergency response speed, and theoretical quiz scores are automatically uploaded to the terminal to generate a personalized training report.
Scenario Adaptation Module (Industry Customization): Features 5 built-in standard scenarios—Workshop Production, Building Construction, Property Maintenance, Household Electricity, and Outdoor Operations—which can be switched with a single click.
MAIN SPECIFICATIONS
Main Structure
Structure Type: Integrated sheet metal cabinet
Shell Material: Cold-rolled steel plate (Thickness: 1.5mm)
Surface Treatment: Electrostatic powder coating
Equipment Dimensions: 1800mm (L) × 1200mm (W) × 1500mm (H) (Customizable)
Power Supply System
Power Parameter: AC220V, 50Hz
Maximum Power: Lower than or equal to 500W
Safety Protection: Equipped with an isolation transformer
Output Voltage: Safe low voltage (Lower than or equal to 36V)
Display Terminal
Screen Size: 21.5-inch Capacitive Touch All-in-One PC
Resolution: 1920 x 1080
Panel Type: VA Soft Screen
Backlight Type: Edge-lit ELED
Viewing Angle: Full viewing angle 179/179/179/179 (L/R/U/D)
Brightness: 230 cd/square meter
Contrast Ratio: 5000:1
Touch Technology: Capacitive multi-point high-precision touch
Sensing Medium: Fingers, capacitive stylus pens, etc.
Sensing Size: Diameter greater than or equal to 5mm (Recommended greater than or equal to 7mm)
Response Time: 8ms
Cursor Speed: 300 points/second
Positioning Calibration: Compliant with HID standard protocol
System Configuration: Intel Core i5 CPU, 128G SSD, 4G RAM
Network Connection: 300Mbps wireless network card module, Ethernet card supporting 100/1000M
Line Overload Module
Protection Mechanism: Equipped with a current fusing device (lead fuse block), operating voltage 220V, fuse melts during overload.
Safety Mechanism: Added infrared induction protection device; automatically cuts off power if foreign objects enter the operating area.
ID Card Reader Module
Decoding Rate: 950ms/time
Decoding Success Rate: 99%
ID Reading Time: Lower than or equal to 1.2 seconds
Average Single Decoding Time: Lower than or equal to 1.5 seconds
OS Compatibility: Supports Android, iOS, Windows, Linux, and other operating systems; provides open API (Application Programming Interface).
Other Key Configurations
Sensing Modules: Current sensor (Range: 0-10A, Accuracy: plus or minus 0.5%), Temperature sensor (Range: 0-200 degrees Celsius), Action recognition sensor.
Haptic Feedback: Vibration feedback module (Adjustable frequency), Temperature simulation module (Adjustable from 0-60 degrees Celsius).
Control System: Industrial-grade PLC controller, equipped with proprietary training control software, supporting WiFi and wired network connections.
